Introducing the Winoa Tech Center: Leading the Future of Blasting Technology



Winoa IKK Japan



Winoa is a global leader in the steel abrasives market, driving innovation in shot and grit technologies. With six technology centers around the world, Winoa offers customers comprehensive education and technical consulting on shot blasting. Today, we’re excited to introduce you to the Winoa Tech Center in Japan, a key facility in Asia where industry professionals can deepen their knowledge and expertise.





Replicating Real-World Conditions to Develop Optimal Solutions Through Testing



At the Winoa Tech Center, we recreate the exact settings and environments of the machines used by our customers, all within a safe and controlled environment. This allows our technical experts to conduct precise tests alongside customers, analyze the results, and help develop new solutions that optimize processes and enhance efficiency.



Mastering Shot Blasting Techniques with Expert Guidance



The Tech Center also provides in-depth training on blasting technology, tailored to the specific needs of our customers and the skill levels of the trainees. Winoa’s training programs ensure that technicians and operators are well-versed in various blasting methods and understand the essential aspects of blasting techniques, including safety, quality, and maintenance. This training empowers customers to maximize the efficiency of their blasting machines and equips them with practical skills that can be immediately applied on the job.









Technology & Machines

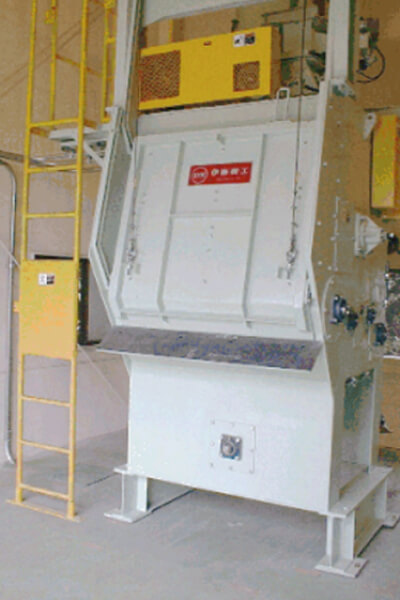

Tumblast IMR Model 602

Sizing Cabinet : W1000 x H900(mm)

Throwing Speed: 50 ~ 90 m/sec

Max Abrasives Thrown: 180kg/min (50 m/sec)

Allowance Weight / Piece: 20kg

Allowance parts weight: 500 kg

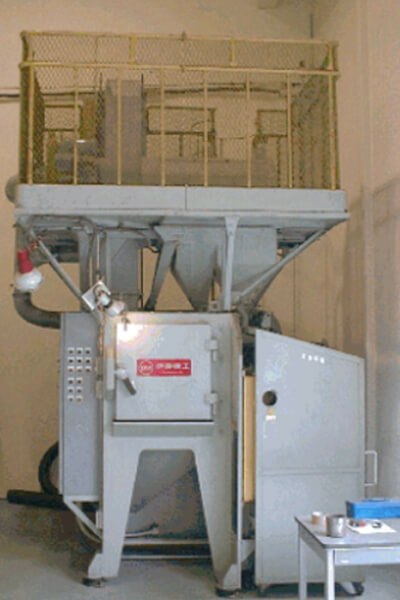

TurnTable IPT Model 03

Sizing Cabinet : W600 x D600 x H600(mm)

Throwing Speed: 50 ~ 100 m/sec

Max Abrasives Thrown: 220kg/min (50 m/sec)

Allowance Weight / Piece: 20 kg

Allowance parts sizing: H300 x D200(mm)

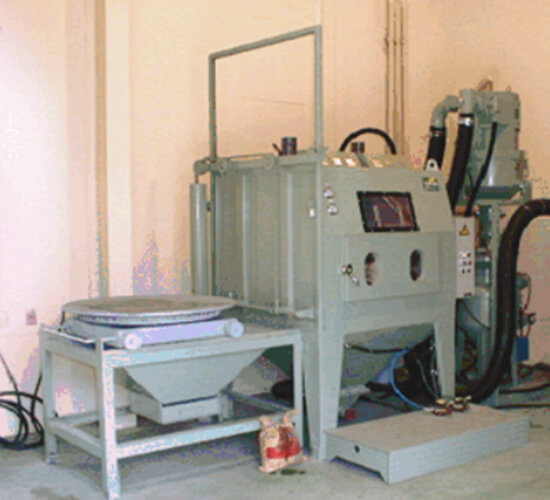

Air Blasting Chambre BAS model 3T

Blasting Cabinet: max size W1160 x D1160 x H800(mm)

Abrasive Pot Capacity: 80 L

Hose: 1 & Various Nozzle Venturi

Dia: 6, 8, 10, 12(mm)

Usage: Manual blasting

Variable Blasting Air Pressure: max 0.55 MPa (5.5 bar)

Max Allowance Parts Size: D600 x H300 mm

Allowance Parts Weight: 200 kg on Turntable

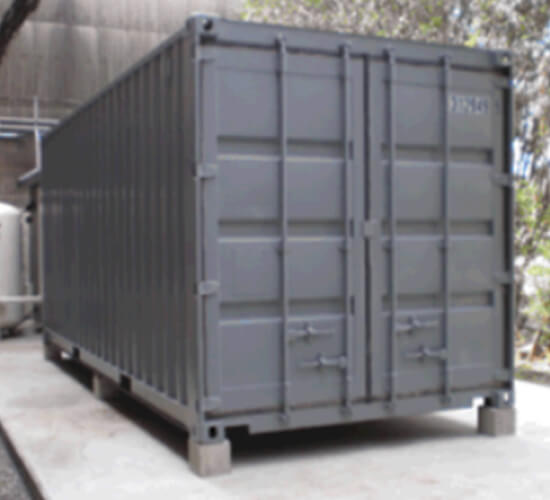

Air Blasting Room : a 20 fts Container

Blasting Cabinet: max size W2300 x D5900 x H2200(mm)

Abrasive Pot Capacity: 80 L

Hose: 1 & Various Nozzle Venturi

Dia: 6, 8, 10, 12(mm)

Usage: Manual blasting

Variable Blasting Air Pressure: max 0.5 MPa (5 bar)

Max Allowance Parts Size: W1500 x D1500 x H1500(mm)

Allowance Parts Weight: 50 kg







We’ve explored the diverse training programs and consulting services available at the Winoa Tech Center. If you need technical testing or consulting on shot blasting or have any questions, feel free to reach out to us using the contact information below.
